Shrink Wrapping Machine (T-80)
author：admin time：2018-11-06
Functions:

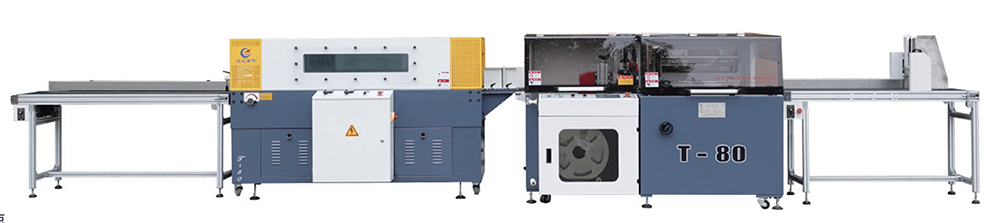

The shrink wrapping machine is assembled by 4 units: Automatic feeding convey table, Automatic sealing and cutting machine, Heat circulating shrink tunnel,Automatic collection convey table, it`s suitable for various kinds of products.the machine mechanical speed can reach 80 packs/minute.
Advantages:
1) The machine adopts Germany Schneider control system, Japan Mitsubishi,Panasonic servo motor driver, and Germany IFM,Japan Omron electric parts.
2)Sealing and cutting part combined controlled by electric eyes and timer,horizontal and vertical double sets of electric eyes for easy switching,can automatic adjust according to the length of packages.
3)Teflon coating constant temperature single blade continuous cutting, can achieve 1m/second transmission speed, good effect, fast speed, no adhesion, continuous line, zero pollution.
4)Heat circulating shrink tunnel, heat control integration, wind direction can be freely adjusted, double layer heat preservation curtain, energy saving, constant temperature, heat evenly, ensure the excellent sealing.
5)Special book flattening device fixed inside of heat tunnel and on the collecting table to ensures the flat of thin books.(Optional)
Parameters:
No. | Name | Description |
1 | Model | T-80 |
2 | Packaging size | L: no limited W:60-400mm H:5-150mm |
3 | Mechanical speed | 80 packs/minute |
4 | Power | 18KW |
5 | Electric | 380V |
6 | Overall size | 7850*1650*1510mm |
7 | Weight | 1600kg |
Unit 1. Feeding conveyor
Total conveyor length: 1500mm
Conveyor width: 500mm
Conveying speed: 0-80m/min
Feed belt height: 850 + 10mm
Unit 2. Automatic sealing and cutting machine
External dimensions (L*W*H): 2100*1520*1300mm
Packing speed (m/min): 0-80 packs/minute
Package size (mm): L not limited; W 60-400 mm; H 5-150mm
Power and power: 50hz. 3.6kw 380V.
Suitable film : 0.015 ~ 0.025 fold shrinkage film thickness of POF
Unit 3. Thermal cycle shrink tunnel
Mechanical dimensions (L*W*H): 2000*800*1375mm
Bake channel size (L*W*H): 1500*550*370mm
Transfer speed (m/min): 0-80 packs/minute
Power and power: 50hz. 13kw 380V.
Unit 4. Receiving conveyor
Total conveyor length: 1800mm
Conveyor width: 500mm
Conveying speed: 0-80m/min
Configurations:
Unit 1.Feeding conveyor | ||
Component | Name | Description/Brand |
| Motor | OTT |
Governor | OTT | |
Conveyor belt | PU | |
structure | Aluminum alloy structure | |
Unit 2. Automatic sealing and cutting machine | ||
Component | Name | Description |
operating system | With the man-machine interface, the operation is simple and easy, the system has the function of automatic monitoring, and the maintenance is convenient. | |
control system | Drive-servo motor | Panasonic |
P L C | Panasonic | |
Contactor | Schneider | |
Intermediate Relay | Schneider | |
Thermostat | Omron | |
Power | Tend | |
Emergency switch | Schneider | |
Sealing system | Heat source | Stainless Heating tube |
Sealing knife | The anti sticking temperature resistant metal sealing knife, knife external Teflon plating layer. | |
Sealing knife temperature | OMRON brand thermostat and thermal sensor control, temperature 0~200 adjustable. | |
Sealing knife protect | Ifm brand ,To effectively prevent the packing object | |
Transverse sealing motor and controller | Kobe motor, Panasonic inverter, to ensure smooth sealing, sealing and cutting speed meet the requirements | |
Longitudinal sealing cylinder and solenoid valve | Airtac brand | |
Waste film recovery system
| Motor |
|
| Japan's Panasonic brand, according to the speed of the recovery of packaging speed control | |
Inductive switch | Sick brand，Accurately control the time of recovery of waste | |
Film feeding system
| Motor | Tpg,Ensure smooth film delivery |
Inductive switch | Sick,Accurately controlling the feeding speed | |
Frequency converter | Japan's Panasonic brand, to control the speed of the film | |
conveying system | Belt | PVC |
Belt | Tpg | |
Frequency converter | Japan's Panasonic brand, control belt conveyor speed before and after | |
Testing | Banner,photoelectric sensor, accurate and sensitive detection of products | |
punch | Stainless steel multi hole drilling machine, so that the air can be discharged quickly when the bag is contracted. | |
Structure | The color is grey carbon steel | |
Unit 3. Thermal cycle shrink tunnel | |||
Component | Name | Description | |
Heating system | Heat source | Stainless steel heating pipe, long service life | |
Thermal insulation layer | The high temperature resistant rock wool production, when the surface temperature is low, reducing heat loss. | ||
Temperature control | Omron,Temperature controller and imported thermal induction, temperature 0~200。 | ||
conveying system | Motor |
| |
Frequency converter | Panasonic,Ensure smooth transportation | ||
Air transport system | Brazil Weg fan motor, the lower part of the advanced air transport, air volume by the inverter directly regulate and furnace wind and bottom air volume can through the handle to adjust, can make full use of heat energy and reduce energy consumption, improve energy efficiency. | ||
Control system
| power switch | Tend | |
Contactor | Schneider | ||
intermediate relay | Schneider | ||
thermostat | Omron | ||
Emergency stop | Schneider | ||
Structure | Outer plate | The use of carbon steel plate by bending, surface spray treatment. Color: grey | |
Inner plate
| The use of galvanized sheet hydraulic production | ||
Unit 4.Receiving conveyor | ||
Component | Name | Description |
Conveying system | Motor | OTT |
Governor | OTT | |
Conveyor belt | PU | |
Structure | Aluminum alloy structure | |
